Split Surface Drilling rig
KG420TF Photovoltaic Drilling Rig
Dimensions (L*W*H mm)
6400×2210×2600
Weight（kg）
5600
Φ Aperture(mm)
115-254
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG420TF Photovoltaic Drilling Rig

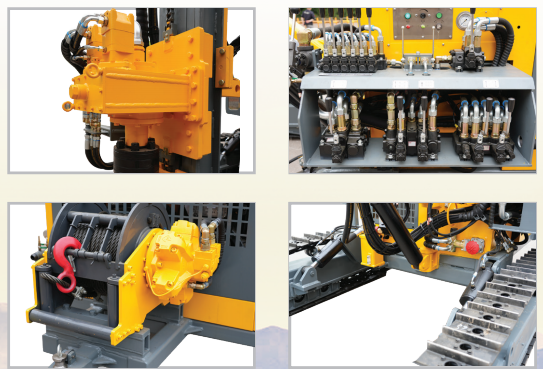

  • Equipped with a Yuchai four-cylinder engine and an integrated controller for real-time monitoring of operating parameters.
  • The folding frame track and four-wheel drive are adopted and track leveling and the enhanced piston walking motor to increase working pressure and climbing capacity.
  • Wear-resistant materials are used in the sliding pressure strip to ensure the service life of the frame;
  • The double motor rotary head with a large reduction ratio provides a rotary torque of over 4000 Nm for the rig;
  • The cylinder is equipped with a 20A roller chain for propulsion, significantly enhancing the reliability of the drilling operation;
  • The hydraulic system has been upgraded with high-strength and large-displacement cast iron gear pumps to ensure product quality and offer advantages such as long service life and stable performance;
  • The thickened profile folder is used for the housing, and the additional ring makes handling and lifting convenient;
  • This drill rig can be widely used in the drilling and blasting operations of large-diameter photovoltaic foundation piles, hydropower projects, open-pit mining, road construction and other construction sites.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
